Front Loading Installation Instructions

Front Loading Glass Rack Installation Instructions

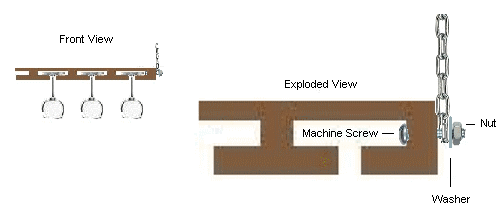

Place the chain, (and then the washers) onto the machine screws and tighten down,
with the provided nuts.
If needed, using a pair of pliers or similar tool,
bend the chain slightly around the machine screws,
to prevent the chain from slipping off. Take the hooks and secure to your mounting surface.
(i.e. beams or studs)...
Hang the unit and adjust as needed to achieve a level platform.

TIP: To achieve a level platform you can screw
the ceiling hooks in or out a little.

---

Tap Or Click On The Picture
To Enlarge!

IMPORTANT:
Once you have achieved your final positioning,
if needed, loosely bend the hooks closed around the chains
and also MAKE SURE you did slightly BEND the chain
(at the four inside corners of unit), to prevent the chain from slipping off.

---

Note: The ceiling hooks we provide you with will work in most applications,
providing you can screw through the ceiling's sheet rock or similar material and into the rafters.
If you decide to use decorative/swag hooks, be sure they are strong enough
to hold the weight of your new glass rack and stemware.
If you have a grid type drop ceiling, you'll need to purchase the appropriate
T Bar hooks for that particular type of mounting.
Any hardware store or home improvement outlet will have what you need.
